Step 3 Install the drive boxes into the rack

Drive boxes must be installed using a rack rail at specific locations on the rack depending on the rack layout.

Procedure

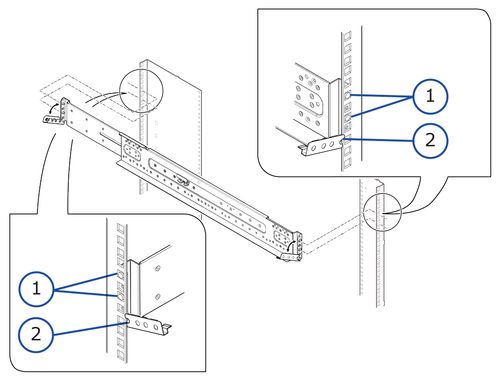

  1. Match or replace the positioning pins on the rail with either circular or square positioning pins depending on the shape of the position holes on the rack.
  2. Pull down the clips on the front and rear of the rail.
  3. Fit the positioning pins into the position holes on the right side of the rack.
  4. Replace the clips to the upright position to hold the rail in place.
    E990 DB rails 1 2 1 2

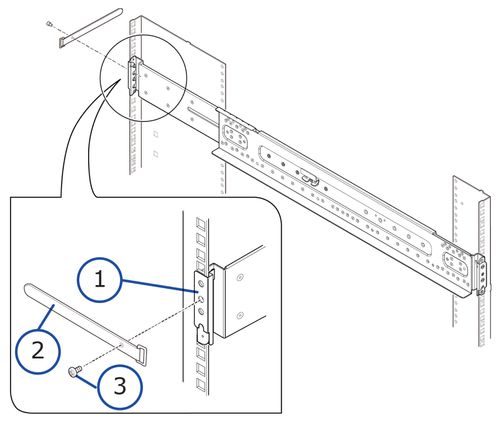

  5. Fix the loop cable tie with the rail screw and fix into position on the rear of the rack.
    e990 rail cable tie 1 2 3
  6. Repeat steps 2-5 on the left side of the rack.

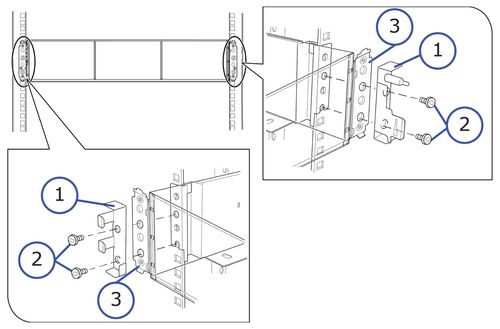

  7. Install the drive box to the rail using the drive box bracket.
  8. Fasten the bracket and drive box to the rail using two screws on each side of the rack.
    E990 db bracket 1 2 3 1 2 3

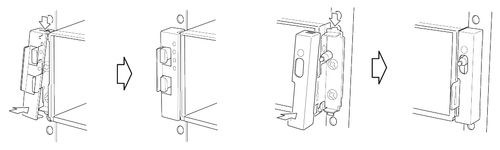

  9. Attach the side bezel to the left and right sides of the rack by sliding the bezels in place.
    E990 db bezels
