Step 4 Cable the drive boxes

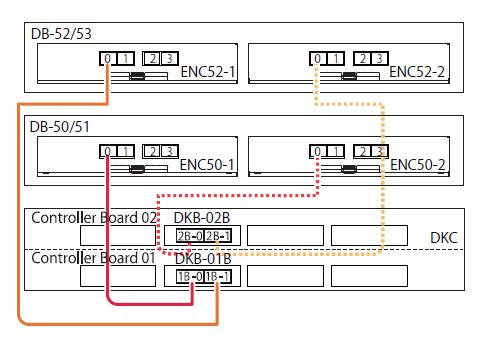

Connect the controller board and the ENC of the drive box with the NVMe cables as shown in the following diagram.

nvme cable diagram
The NVMe cable consists of a pair of cables attached to connectors. Be careful not to pass another cable between the two NVMe cables in the pair.

Before you begin

Procedure

  1. Choose corresponding color-coded labels among the color codes that come with the controller and drive box.
    The cable color-coded labels help you connect the cables correctly. Numbers printed on the labels are supplemental information.

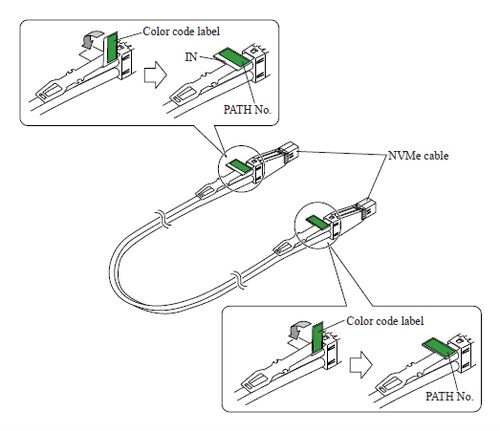

  2. Attach color-coded labels to the NVMe cables (same color for IN and OUT).
    nvme color code labels

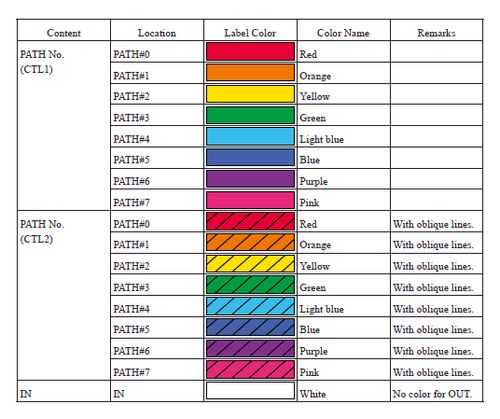

    nvme color list
  3. Connect the NVMe cable to the NVMe port on the disk board installed in the controller board.

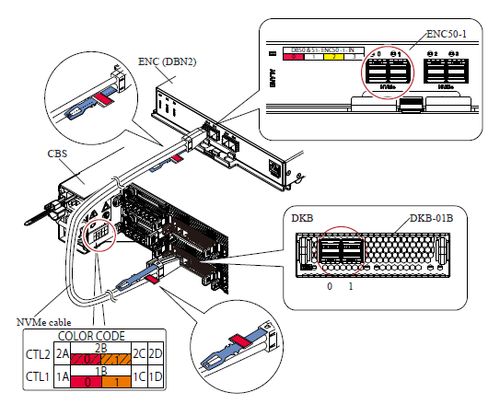

  4. Connect the NVMe cable to the ENC (IN side (0)) in the drive box.
    Connect controller board 1 and ENC1 of the drive box. Also connect controller board 2 and ENC2 of the drive box.
    nvme cable connection

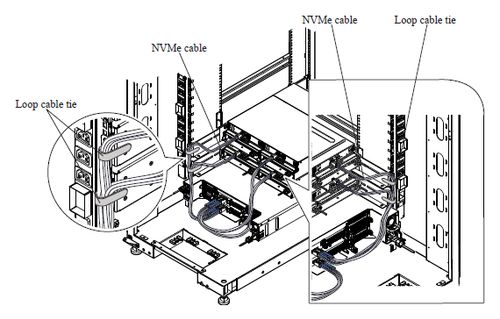

  5. Route the NVMe cable passing under the controller chassis.
    Do not fix the NVMe cables and the power cables together.
    nvme cable routing
