Step 6 Connect the management PC

A customer-supplied computer is used to set up and manage the storage system.

Before you begin

Procedure

  1. Connect one end of the Ethernet cable to the management port on the rear of either controller.
    DKS rear lan

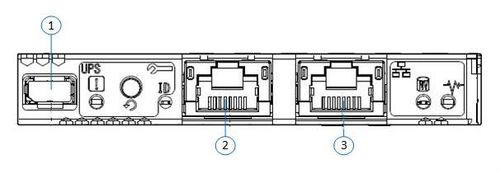

    LAN Callout 1 2 3
  2. Connect the other end of the cable to the management PC.

Requirements for the management PC

The management PC is LAN-attached to the VSP One Block storage system and communicates with the Embedded Storage Manager (ESM) modules on the controllers of the storage system. The ESMs host the embedded management tools for the storage system: VSP One Block Administrator, maintenance utility, and embedded Command Control Interface (CCI).

Before logging in to the storage system for the first time, make sure the management PC meets the following hardware and software requirements.

Hardware requirements for the management PC

Item
Processor (CPU)
Requirements
Windows 11:
  • Minimum: 64-bit compatible processor with 2 cores or more at 2.1 GHz or better
  • Recommended: 64-bit compatible processor with 4 cores or more at 2.1 GHz or better

Other than Windows 11:

  • Minimum: Intel Core i3 1.5 GHz (2 core) equivalent or better
  • Recommended: Intel Core i3 1.5 GHz (4 core) equivalent or better
Item
Memory (RAM)
Requirements
Windows 11:
  • Minimum: 8 GB or more
  • Recommended: 16 GB or more

Other than Windows 11:

  • Minimum: 4 GB or more
  • Recommended: 8 GB or more
Item
Available storage space
Requirements
Minimum: 500 GB
Item
Monitor
Requirements
  • True Color 32-bit or better
  • Resolution: 1280 x 1024 or better
Item
Keyboard and mouse
Requirements
Required
Item
LAN
Requirements
Ethernet1000Base-T
Item
LAN cable
Requirements
CAT .5e

Software requirements for the management PC

Use software (including the OS) that is currently supported by the vendor. We do not guarantee operations performed using software that is no longer supported by the vendor.

OS
Windows Server 2022
Architecture
64 bit
Browser
  • Microsoft Edge15
  • Google Chrome3
OS
Windows Server 2019
Architecture
64 bit
Browser
  • Microsoft Edge15
OS
Windows Server 2016
Architecture
64 bit
Browser
  • Microsoft Edge15
  • Google Chrome3
OS
Windows 11
Architecture
64 bit
Browser
  • Microsoft Edge15
  • Google Chrome3
OS
Windows 10
Architecture
32 bit / 64 bit
Browser
  • Microsoft Edge15
  • Google Chrome3
OS
Red Hat Enterprise Linux 7.5
Architecture
64 bit
Browser
  • Mozilla Firefox4
OS
Red Hat Enterprise Linux 7.4
Architecture
64 bit
Browser
  • Mozilla Firefox4
