Step 2 Deploying the OVA

Login to vSphere or vCenter

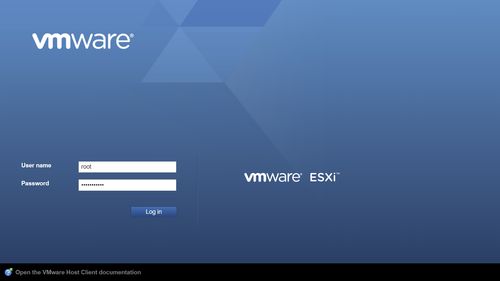

Login ES Xi

Option 1 - Deploy the OVA from vSphere

  1. In vSphere Right-Click on the VM and select create/register VM

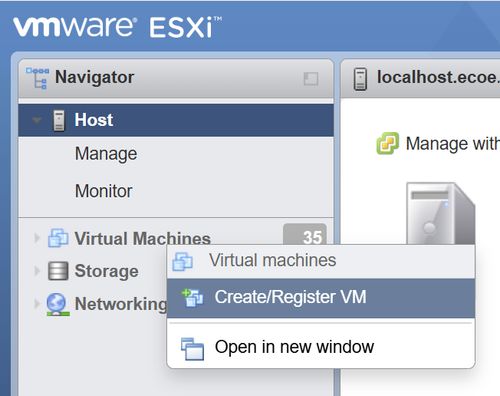

  2. vsphere-OVA Step1
  3. Select Deploy from an OVA or OVF File

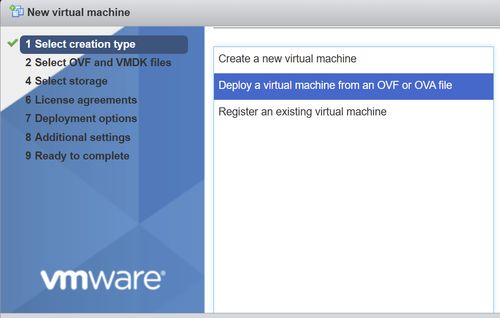

  4. vsphere-OVA Step2

Option 2 - Deploy the OVA from vCenter

Right-click on any Compute and select Deploy OVF Template

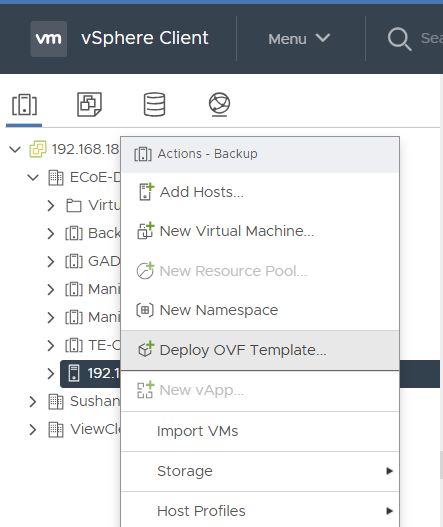

v Center-OVA Step1

Select a Datastore

Select a datastore to deploy the VM on

63GB of capacity will be allocated and 30GB will be used

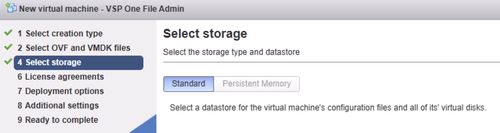

Select-Storage

Select Network Adaptor

Select a Network Adaptor for the VM

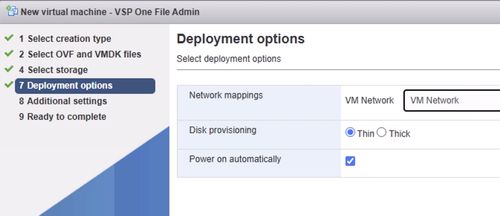

select-network-adaptor
