Step 8 Onboard Federated Services (Optional)

You can add Active Directory for Management authentication.

Logout and then Login with the default secadmin user.

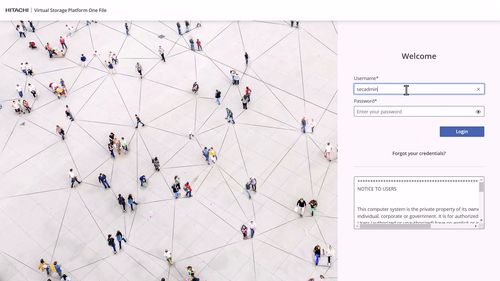

1. Login with secadmin user
   Default Credentials:
   Username: secadmin
   Password: nasadmin
   Tap on the image to see it in fullscreen.

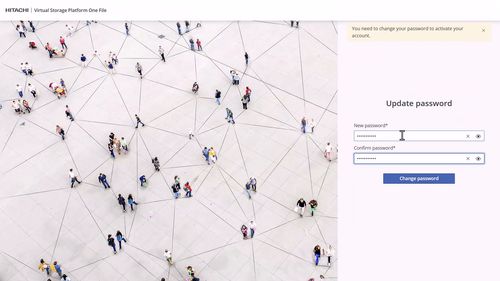

2. Change the default password

   When prompted, change the default password

   Tap on the image to see it in fullscreen.


3. Navigate to Keycloak

   Click on Keycloak

   Tap on the image to see it in fullscreen.

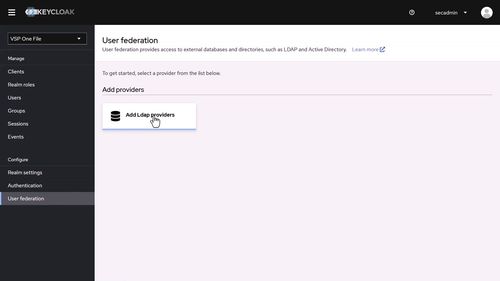

4. Add LDAP Provider

   Navigate to "User Federation" and then click on the "Add Ldap Providers" button

   Tap on the image to see it in fullscreen.

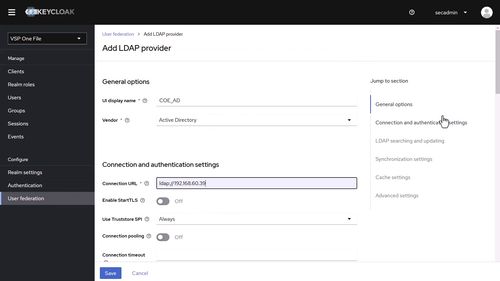

5. Fill in the Details

   Fill in the required details and click Save

   Refer to the table below for a description of the fields

   Tap on the image to see it in fullscreen.



   Setting	Description
   UI Display Name	A Name to identify the LDAP Provider
   Connection URL	The Connection URL to the LDAP Server
   Bind DN	The DN of the LDAP Admin
   Edit Mode	READ_ONLY is a read-only LDAP store. WRITABLE means data will be synced back to LDAP on demand. UNSYNCED means user data will be imported, but not synced back to LDAP.
   Users DN	The parent DN of the LDAP Users that requires access

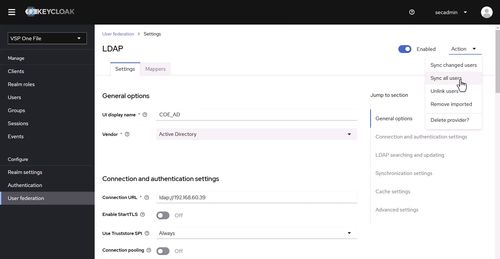

6. Sync All Users

   On the Top right "Action" drop-down, select "Sync all Users"

   Tap on the image to see it in fullscreen.

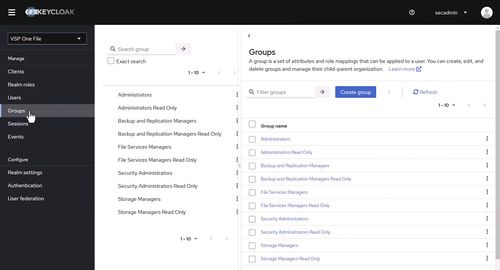

7. Add Users or Groups

   You can now add Users or Groups, with various roles, that requires access to the UI

   Tap on the image to see it in fullscreen.
